PIN
ON ECU
|
WD PAGE
|
CONNECTION
|
COMPONENT
CONNECTED |
NOTES
|
WIRE COLOR,
GAUGE
| PIC OF LOCATION
|
1
|
78/9
|

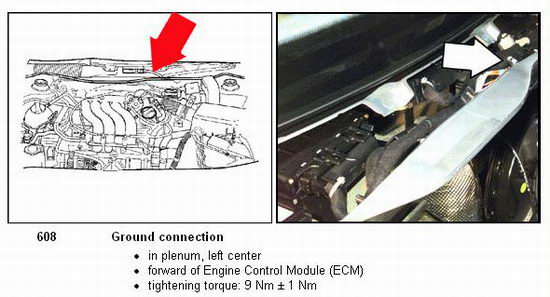

608
|
Ground Connection (in center plenum chamber)
|
|
brown/red
2,5
|
|
2
|
78/9
|
131
|
Ground connection -2-, in engine compartment wiring harness
|
|
brown/red
2,5
|
|
3
|
78/4
|
T6/1
|
6-Pin Connector, brown, in protective housing for connectors, in plenum chamber, left
|
|
black
1,5
|
|
|
78/4
|
A104
|
Plus connection -2- (15), in instrument panel wiring harness |
|
black/lilac
1,5
|
|
|
|
S229 - 29a
|
Fuse 29 in fuse holder
|
15 amp |
|
|
4
|
|
|
|
|
|
|
5
|
78/10
|
T6c/4
|
6-Pin Connector, in protective housing for connectors under right floor
|
|
white
1,0
|
|
|
|

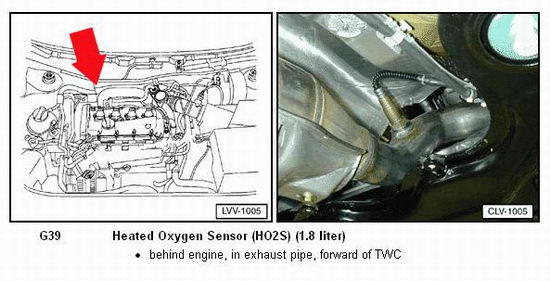

G39 |
Heated Oxygen Sensor (HO2S) |
|
|
|
6
|
al
|
|
|
|
|
|
7
|
|
|
|
|
|
|
8
|
|
|
|
|
|
|
| 9 |
78/12 |
T2f/2
|
Double Connector, in engine compartment left
|
|
brown/yellow, 0,35
|
|
|
78/12 |

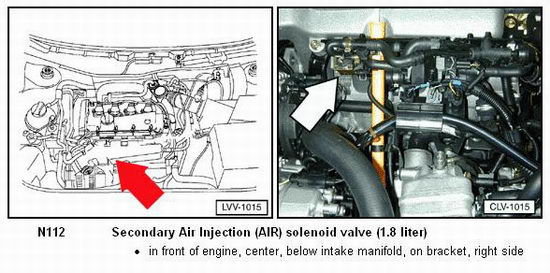

N112
|
Secondary Air Injection (AIR) Solenoid Valve
|
N112 - 2
|
brown/yellow, 0,5
|
|
10
|
|
|
|
|
|
|
11
|
|
|
|
|
|
|
12
|
|
|
|
|
|
|
13
|
|
|
|
|
|
|
14
|
|
|
|
|
|
|
15
|
|
|
|
|
|
|
16
|
|
|
|
|
|
|
17
|
|
|
|
|
|
|
18
|
|
|
|
|
|
|
19
|
|
|
|
|
|
|
20
|
|
|
|
|
|
|
21
|
78/4
78/3
|
J271
|
Motronic
engine control module (ECM) power supply relay, in protective housing,
in engine compartment, left, production control number(428)
|
5/85
|
lilac
0,35
|
|
22
|
78/11
|
T10/3
|
10-Pin Connector, orange, in protective housing for connectors, in plenum chamber, left
|
Automatic
transmission only
|
blue/green
0,35
|
|
23
|
|
|
|
|
|
|
24
|
|
|
|
|
|
|
25
|
|

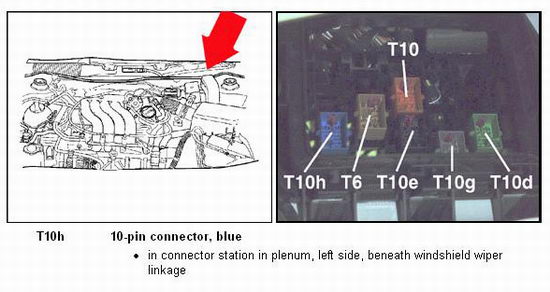

T10h/7
|
10-Pin Connector, blue, in protective housing for connectors, in plenum chamber, left
|
|
yellow/brown
0,35
|
|
|
|
V144
|

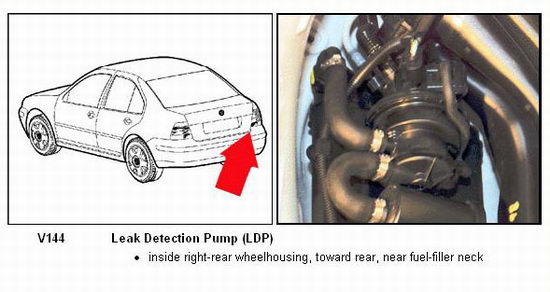

Leak detection pump (LDP) |
V144- 2
|
yellow/brown
0,5
|
|
26
|
|
|
|
|
|
|
27
|
78/13 |

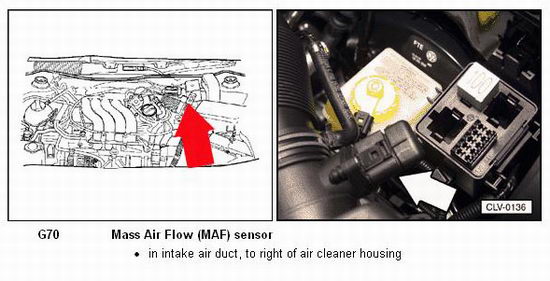

G70
|
Mass Air Flow (MAF) Sensor
|
G70 - 3
|
green
0,35
|
|
28
|
|
T10w/5
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
blue/lilac
0,35
|
|
29
|
78/13 |
G70
|
Mass Air Flow (MAF) Sensor
|
G70 - 5
|
black
0,35
|
|
30
|
|
T10w/7
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
white/red
0,35
|
|
31
|
|
|
|
|
|
|
32
|
|
|
|
|
|
|
33
|
78/14 |
T10h/6
|
10-Pin Connector, blue, in protective housing
for connectors, in plenum chamber, left
|
|
gray/blue
0,35
|
|
|
78/14
|
T6b/5
|
6-Pin Connector on G185: Sender -2- for accelerator pedal position
|
Integral with G79 |
gray/blue
0,5
|
|
34
|
78/14 |
T10h/1
|
10-Pin Connector, blue, in protective housing
for connectors, in plenum chamber, left
|
|
brown/white
0,35
|
|
|
78/14 |
T6b/6
|
6-Pin Connector on G185: Sender -2- for accelerator pedal position |
Integral with G79
|
brown/blue
1,0
|
|
35
|
78/14 |
T10h/5
|
10-Pin Connector, blue, in protective housing
for connectors, in plenum chamber, left
|
|
white/blue
0,35
|
|
|
78/14 |
T6b/4
|

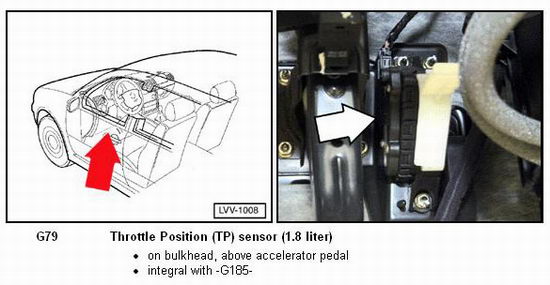

6-Pin Connector on G79: Throttle Position (TP) Sensor
|
Integral with G185 |
white/blue
0,5
|
|
36
|
78/14 |
T10h/4
|
10-Pin Connector, blue, in protective housing
for connectors, in plenum chamber, left
|
|
gray/red
0,35
|
|
|
78/14 |
T6b/3
|
6-Pin Connector on G79: Throttle Position (TP) Sensor |
Integral with G185
|
gray/red
0,5
|
|
37
|
78/14 |

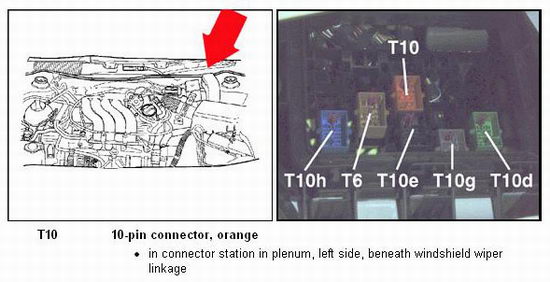

T10/9
|
10-Pin Connector, orange, in protective housing for connectors, in plenum chamber, left
|
|
green/brown
0,5
|
|
| 38 |
78/13
|
T10e/3
|
10-Pin Connector, black, in protective housing for connectors, in plenum chamber, left
|
|
black/white
0,35
|
|
|
|
T10s/7
T10s/4
|
10-Pin Connector, near steering column |
|
both wires: black/yellow
0,35
|
|
|
|
E45
|
Cruise Control Switch |
|
|
|
39
|
78/13 |
T10w/4
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
white/red
0,35
|
|
|
78/13
|
T4q/2 |
4-Pin Connector for F36: Clutch Vacuum Vent Valve Switch |
Manual transmission only |
white/red
1,0 |
|
40
|
|
T10/8
|
10-Pin Connector, orange, in protective housing for connectors, in plenum chamber, left
|
A/C connection
|
blue/red
0,35
|
|
41
|
|
T10/7
|
10-Pin Connector, orange, in protective housing for connectors, in plenum chamber, left
|
A/C connection
|
green/grey
0,35
|
|
42
|
|
|
|
|
|
|
43
|
78/14 |
T10/1
|
|
|
gray/white
0,35
|
|
|
|
W
T32a/5
|
32-Pin Connector, green on J285: Control module with indicator unit in instrument
panel insert
|
|
gray/white
0,35
|
|
44
|
|
|
|
|
|
|
45
|
|
|
|
|
|
|
46
|
|
|
|
|
|
|
47
|
|
T10w/10
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
lilac/yellow
0,35
|
|
48
|
|
T10w/8
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
white/red
0,35
|
|
49
|
|

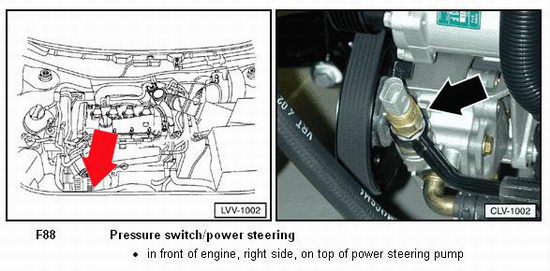

F88
|
Pressure switch/power steering
|
F88 - 1
|
white/lilac
0,35
|
|
50
|
|
F88
|
Pressure switch/power steering
|
F88 - 2
|
white/grey
0,35
|
|
51
|
78/10
|
T6c/5
|
6-Pin Connector, in protective housing for connectors under right floor
|
|
grey/white
0,35
|
|
|
78/10
|
G39 |
Heated Oxygen Sensor (HO2S) |
|
|
|
52
|
78/10
|
T6c/6
|
6-Pin Connector, in protective housing for connectors under right floor
|
|
grey/red
0,35
|
|
|
78/10
|
G39 |
Heated Oxygen Sensor (HO2S) |
|
|
|
53
|
78/13 |
G70
|
Mass Air Flow (MAF) Sensor
|
G70 - 4
|
red/lilac
0,35
|
|
54
|
78/14
|
T10/6
|
10-Pin Connector, orange, in protective housing for connectors, in plenum chamber, left
|
|
blue/white
0,35
|
|
|
78/14
|
A27
|
Wire connection (vehicle speed signal), in
instrument panel wiring harness
|
Manual transmission/ 4 speed automatic
transmission only
|
blue/white
0,35
|
|
|
78/14
|

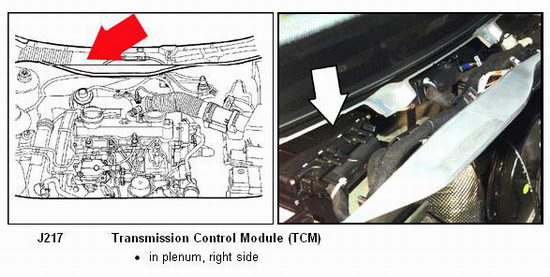

T68a/63
|
68-Pin Connector, on J217: Transmission Control Module (TCM)
(5 speed automatic transmission)
|
5 Speed automatic transmission only
|
blue/lilac
0,35
|
|
55
|
78/12 |

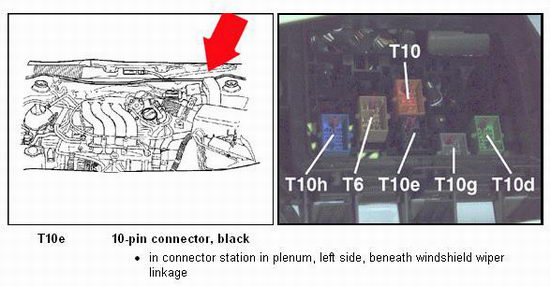

T10e/5
|
10-Pin Connector, black, in protective housing
for connectors, in plenum chamber, left
|
|
white/yellow
0,35
|
|
|
78/12
|

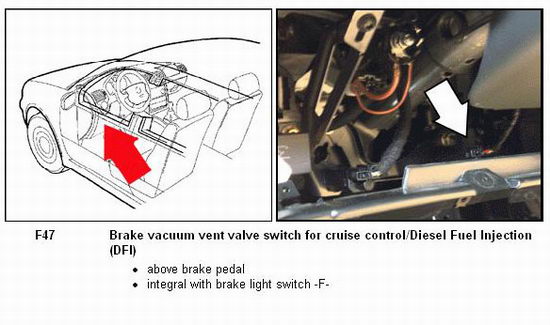

F47
|
Brake Vacuum Vent Valve Switch for cruise
control
|
F47 - 3
|
white/yellow
1,0
|
|
56
|
78/12
|
T10e/4
|
10-Pin Connector, black, in protective housing
for connectors, in plenum chamber, left
|
|
black/red
0,35
|
|
|
78/12
|
A18
|
Wire connection (54), in instrument panel
|
|
red/black
1,0
|
|
57
|
78/13 |
T10e/2
|
10-Pin Connector, black, in protective housing for connectors, in plenum chamber, left
|
|
red/yellow
0,35
|
|
|
78/13
|
T10s/3
|
10-Pin Connector, near steering column |
|
red/yellow
0,35
|
|
|
78/13
|
E227
|
Cruise Control Push Button (SET)
|
|
|
|
58
|
|
T10w/3
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
orange/brown
0,35
|
|
59
|
|
|
|
|
|
|
60
|
|
T10w/2
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
orange/black
0,35
|
|
61
|
|
|
|
|
|
|
62
|
|
D78
|
Plus connection -1- (30a), in engine
compartment wiring harness
|
|
red/green
0,35
|
|
|
|
T6/4
|
6-Pin Connector, brown, in protective housing for connectors, in plenum chamber, left
|
|
red/green
2,5
|
|
63
|
78/10
|

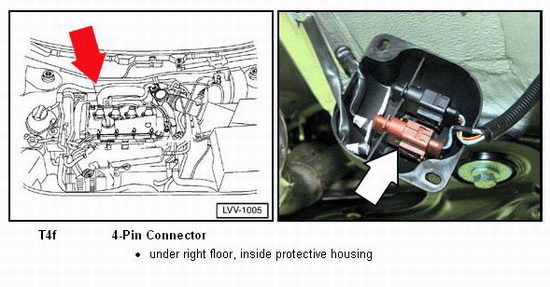

T4f/2
|
4-Pin Connector, in protective housing for connectors under right floor
|
|
grey/yellow
0,35
|
|
|
|

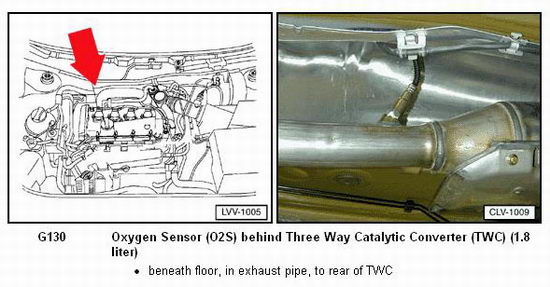

G130 |
Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC) |
|
white
1,0 |
|
64
|
78/10
|

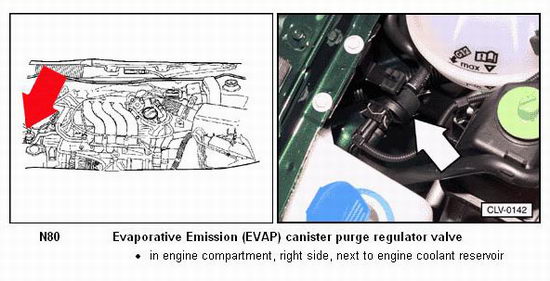

N80
|
Evaporative Emission (EVAP) Canister Purge Regulator Valve
|
N80 - 2
|
lilac/red
0,35
|
|
65
|
78/14
|
|
|
|
|
|
66
|
78/12 |
|
|
|
|
|
67
|
|
T10w/9
|
10-Pin Connector, white, in protective housing for connectors, in plenum chamber, left
|
|
green/lilac
0,35
|
|
|
|
|
|
|
|
|
68
|
|
T4f/3
|
4-Pin Connector, in protective housing for connectors under right floor
|
|
grey/white
0,35
|
|
|
|
G130
|
Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC) |
|
grey
1,0
|
|
69
|
|
T4f/4
|
4-Pin Connector, in protective housing for connectors under right floor
|
|
grey/red
0,35
|
|
|
|
G130
|
Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC) |
|
white
1,0
|
|
70
|
78/10
|
T6c/1
|
6-Pin Connector, in protective housing for connectors under right floor
|
|
green
0,35
|
|
|
78/10
|
G39 |
Heated Oxygen Sensor (HO2S) |
|
|
|
71
|
78/10
|
T6c/2
|
6-Pin Connector, in protective housing for connectors under right floor
|
|
black
0,35
|
|
|
78/10
|
G39 |
Heated Oxygen Sensor (HO2S) |
|
|
|
72
|
78/14 |
T10h/2
|
10-Pin Connector, blue, in protective housing
for connectors, in plenum chamber, left
|
|
green/white
0,35
|
|
|
|
T6b/1
|
6-Pin Connector on G185: Sender -2- for accelerator pedal position
|
Integral with G79
|
gray/white
0,5
|
|
73
|
78/14 |
T10h/3
|
10-Pin Connector, blue, in protective housing
for connectors, in plenum chamber, left
|
|
yellow/green
0,35
|
|
|
|
T6b/2
|
6-Pin Connector on G79: Throttle Position (TP) Sensor |
|
yellow/green
0,5
|
|
74
|
|
|
|
|
|
|
75
|
78/13 |
T10e/1
|
10-Pin Connector, black, in protective housing for connectors, in plenum chamber, left
|
|
blue/gray
0,35
|
|
|
78/13
|
T10s/2
|
10-Pin Connector, near steering column |
|
blue
0,35
|
|
|
78/13
|
E45
|
Cruise Control Switch
|
|
|
|
76
|
78/13 |
T10e/9
|
10-Pin Connector, black, in protective housing for connectors, in plenum chamber, left
|
|
white
0,35
|
|
|
78/13
|
T10s/5
|
10-Pin Connector, near steering column |
|
white
0,35
|
|
|
78/13
|
E45
|
Cruise Control Switch
|
|
|
|
77
|
|
|
|
|
|
|
78
|
|
|
|
|
|
|
79
|
|
|
|
|
|
|
80
|
|
T10h/9
|
10-Pin Connector, blue, in protective housing for connectors, in plenum chamber, left
|
|
green/lilac
0,35
|
|
|
|
V144
|
Leak detection pump (LDP)
|
V144 -1
|
green/lilac
0,5
|
|
81
|
|
|
|
|
|
|
82
|
|

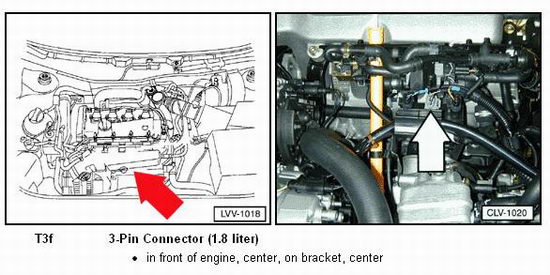

T3f/3
|
3-Pin Connector, in engine compartment, front
|
G28: Engine Speed (RPM) Sensor
|
white
0,35
|
|
83
|
|
T6a/2
|
6-Pin Connector
|
J338: Throttle Valve Control Module
|
lilac/white
0,35
|
|
84
|
|
T6a/4
|
6-Pin Connector
|
G188: Angle sensor -2- for throttle drive (power
accelerator actuation) on J338 - Throttle Valve Control Module
|
blue/grey
0,35
|
|
85
|
|
G42
|
Intake Air Temperature (IAT) Sensor
|
G42 - 1
|
blue/yellow
0,35
|
|
86
|
|
G40
|
Camshaft Position (CMP) Sensor
|
G40 - 2
|
lilac/yellow
0,35
|
|
87
|
|
|
|
|
|
|
88
|
|

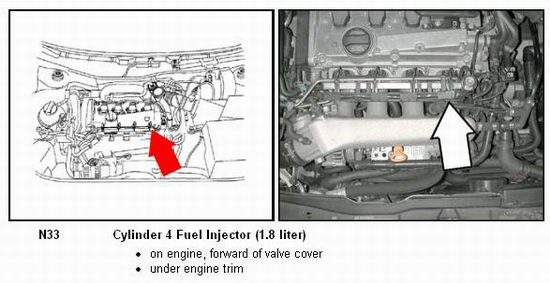

N33
|
Cylinder 4 Fuel Injector
|
N33 - 2
|
lilac/blue
0,35
|
|
89
|
|

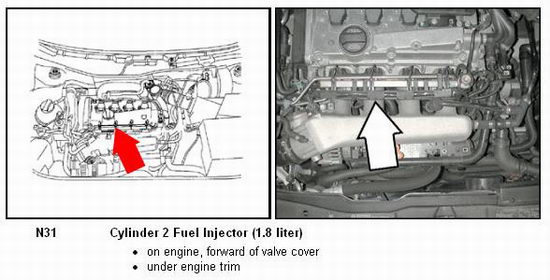

N31
|
Cylinder 2 Fuel Injector
|
N31 - 2
|
lilac/green
0,35
|
|
90
|
|
T3f/2
|
3-Pin Connector, in engine compartment, front
|
G28: Engine Speed (RPM) Sensor
|
brown
0,35
|
|
91
|
|
T6a/6
|
6-Pin Connector
|
G187: Angle sensor -1- for throttle drive (power
accelerator actuation) on J338 - Throttle Valve Control Module
|
white/grey
0,35
|
|
92
|
|
T6a/1
|
6-Pin Connector
|
J338 - Throttle Valve Control Module
|
blue/white
0,35
|
|
93
|
|

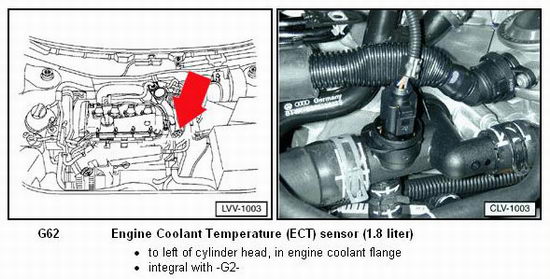

G62
|
Engine Coolant Temperature (ECT) Sensor
|
G62 - 3
|
grey/yellow
0,35
|
|
94
|
|
T4d/3
|
4-Pin Connector
|

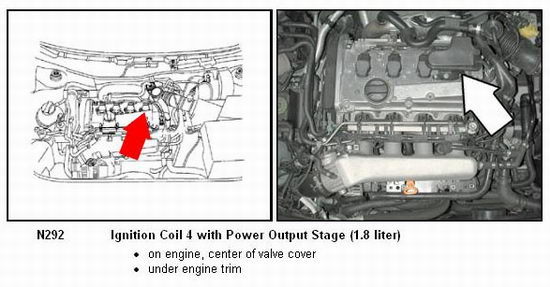

N292: Ignition Coil 4 with Power Output Stage
|
black/lilac
0,35
|
|
95
|
|
T4b/3
|
4-Pin Connector
|

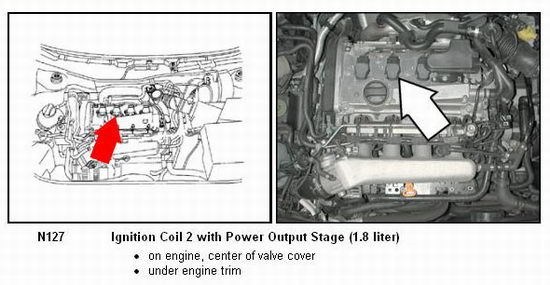

N127: Ignition Coil 2 with Power Output Stage |
white/yellow
0,35
|
|
96
|
|

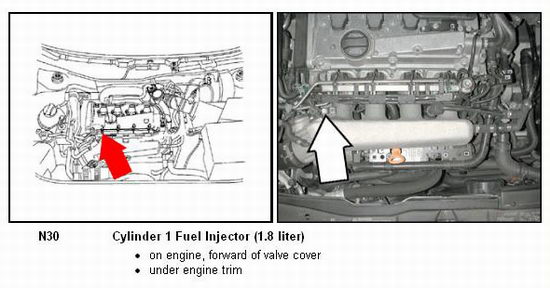

N30
|
Cylinder 1 Fuel Injector
|
N30 - 2
|
lilac
0,35
|
|
97
|
|

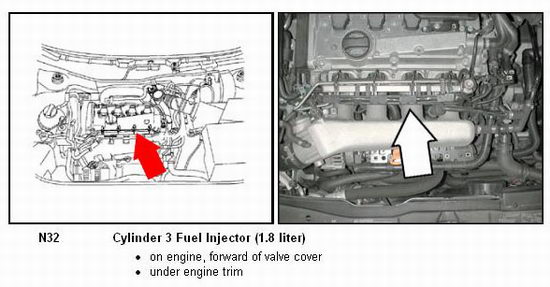

N32
|
Cylinder 3 Fuel Injector
|
N32 - 2
|
lilac/red
0,35
|
|
98
|
|
G40
|
Camshaft Position (CMP) Sensor
|
G40 - 1
|
lilac/green
|
|
99
|
|

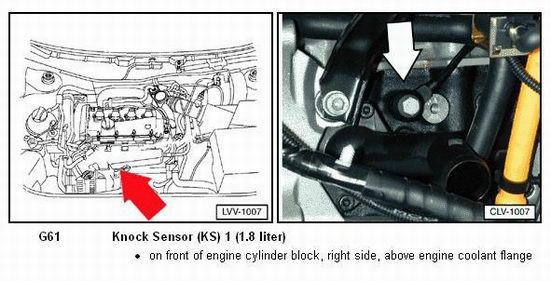

G61
|
Knock Sensor (KS) 1
|
G61 - 2
|
blue
0,35
|
|
100
|
|
|
|
|
|
|
101
|
|
T4g/4
|
4-Pin Connector
|

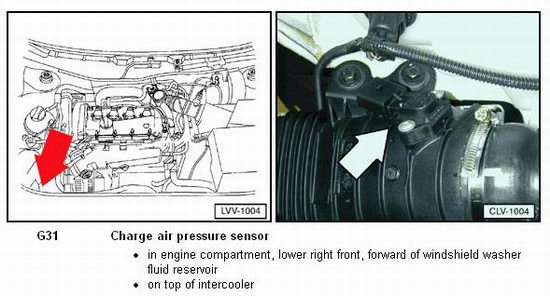

G31: Charge Air Pressure Sensor
|
lilac/grey
0,35
|
|
102
|
|
T4a/3 |
4-Pin Connector
|
N70: Ignition Coil 1 with Power Output Stage |
lilac/white
0,35
|
|
103
|
|
T4c/3
|
4-Pin Connector
|
N291: Ignition Coil 3 with Power Output Stage |
black/brown
0,35
|
|
104
|
|

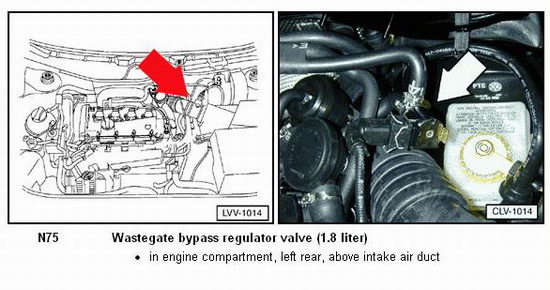

N75
|
Wastegate Bypass Regulator
|
N75 - 2
|
green/brown
0,35
|
|
105
|
|
|
|
|
|
|
106
|
|
N249
|
Recirculating valve for turbocharger
|
N249 - 2
|
grey/green
0,35
|
|
107
|
|

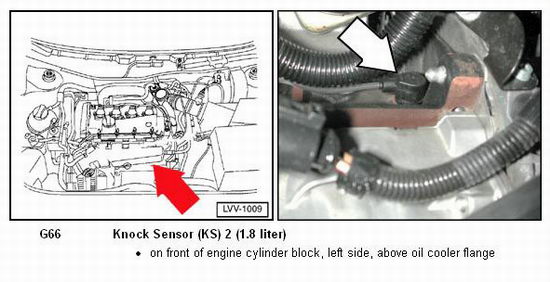

G66
|
Knock Sensor (KS) 2
|
G66 - 1
|
grey
0,35
|
|
108
|
|
G61
|
Knock Sensor (KS) 1
|
G61 - 1
|
grey
0,35
|
|
109
|
|
|
|
|
|
|
110
|
|
|
|
|
|
|
111
|
|
|
|
|
|
|
112
|
|
|
|
|
|
|
113
|
|
|
|
|
|
|
114
|
|
|
|
|
|
|
115
|
|

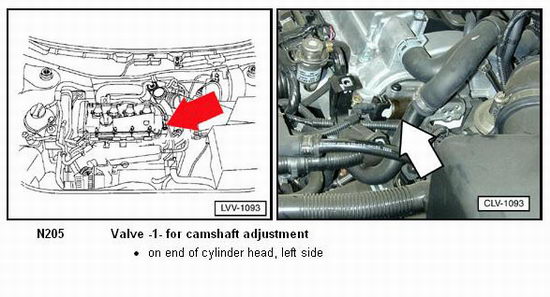

N205
|
Valve -1- for camshaft adjustment
|
N205 - 2
|
green/white
1,0
|
|
116
|
|
|
|
|
|
|
117
|
|
T6a/3
|
6-Pin Connector
|
G186: Throttle drive (power accelerator actuation) on J338 - Throttle Valve Control Module
|
white
1,0
|
|
118
|
|
T6a/5
|
6-Pin Connector
|
J338 - Throttle Valve Control Module
|
lilac/black
1,0
|
|
119
|
|
|
|
|
|
|
120
|
|
|
|
|
|
|
121
|
|
T4a/1
|
4-Pin Connector
|
Splices into all 4 coils
|
white/lilac
1,5
|
|
